5. Discrete Rigid Contact

5.1. Goal

Compare co-simulation with a monolithic Modelica reference for rigid wall contact, and show convergence as communication step size decreases.

5.2. Model Map

5.3. Assumptions and Scope

• Rigid wall contact (event-driven)

• Fixed-step co-simulation; reference uses variable-step DASSL

5.4. Prerequisites and Setup

Show code cell content

Hide code cell content

from pathlib import Path
import sys
_repo = Path.cwd()
while _repo != _repo.parent and not (_repo / "pyproject.toml").exists():
    _repo = _repo.parent
sys.path.insert(0, str(_repo))

import numpy as np
import matplotlib.pyplot as plt

from OMPython import ModelicaSystem
from demos.ControlledPendulum.src.master_pendulum import MasterPendulum, FMUPendulum
import demos.ControlledPendulum.src.master_pendulum.components.fem.pendulum_config as config

from syssimx import FMUComponent, System, SystemGraphVisualizer, Connection, EventConnection

5.5. Discover FMUs

PLATFORM = sys.platform
demo_dir_path = _repo / "demos" / "ControlledPendulum"
package_path = Path(demo_dir_path / "src/modelica/ControlledPendulum")
fmu_output_dir = Path(demo_dir_path / f"artifacts/fmus/{PLATFORM}")

fmu_paths = {}
for subdir in fmu_output_dir.iterdir():
    if subdir.is_dir():
        fmu_paths[subdir.name] = {}
        for fmu_file in subdir.glob("*.fmu"):
            fmu_paths[subdir.name][fmu_file.stem] = fmu_file
    else:
        fmu_paths[subdir.stem] = subdir

5.6. Modelica Reference Simulation

We refer to the monolithic Modelica simulation as “Modelica” in the following. The simulation results are obtained by running the RigidContact example model in OpenModelica using the OMPython interface. The model can be found in the demos/ControlledPendulum/src/modelica/ControlledPendulum/Examples/Contact/RigidContact.mo package.

5.6.1. PID without Integrator Reset on Contact

from OMPython import ModelicaSystem

reference = ModelicaSystem(fileName=str(package_path / "package.mo"),
                           modelName="ControlledPendulum.Examples.Contact.RigidContact")
reference.setParameters({'useReset': 'false'})
reference.buildModel()

simargs = {
    "stopTime": 0.4,
    "stepSize": 0.001,
}

reference.simulate(simargs=simargs)

ref_sol_names = ('time', 'theta', 'theta_ref', 'theta_meas', 'pid.I_out', 'pendulum.contact')
ref_sol_noreset = {name: reference.getSolutions(name).flatten() for name in ref_sol_names}

Show code cell output

Hide code cell output

[OMC log for 'sendExpression(buildModel(ControlledPendulum.Examples.Contact.RigidContact, variableFilter=".*"), True)']: [translation:warning:496] The initial conditions are not fully specified. For more information set -d=initialization. In OMEdit Tools->Options->Simulation->Show additional information from the initialization process, in OMNotebook call setCommandLineOptions("-d=initialization").
[OMC log for 'sendExpression(buildModel(ControlledPendulum.Examples.Contact.RigidContact, variableFilter=".*"), True)']: [translation:warning:496] The initial conditions are not fully specified. For more information set -d=initialization. In OMEdit Tools->Options->Simulation->Show additional information from the initialization process, in OMNotebook call setCommandLineOptions("-d=initialization").

reference._simulate_options

{'startTime': '0',
 'stopTime': '1',
 'stepSize': '0.001',
 'tolerance': '1e-06',
 'solver': 'dassl',
 'outputFormat': 'mat'}

5.6.2. PID with Integrator Reset on Contact

reference.setParameters({'useReset': 'true'})
reference.buildModel()
reference.simulate(simargs=simargs)
ref_sol_reset = {name: reference.getSolutions(name).flatten() for name in ref_sol_names}

Show code cell output

Hide code cell output

[OMC log for 'sendExpression(buildModel(ControlledPendulum.Examples.Contact.RigidContact, variableFilter=".*"), True)']: [translation:warning:496] The initial conditions are not fully specified. For more information set -d=initialization. In OMEdit Tools->Options->Simulation->Show additional information from the initialization process, in OMNotebook call setCommandLineOptions("-d=initialization").

5.6.3. Compare Modelica Results

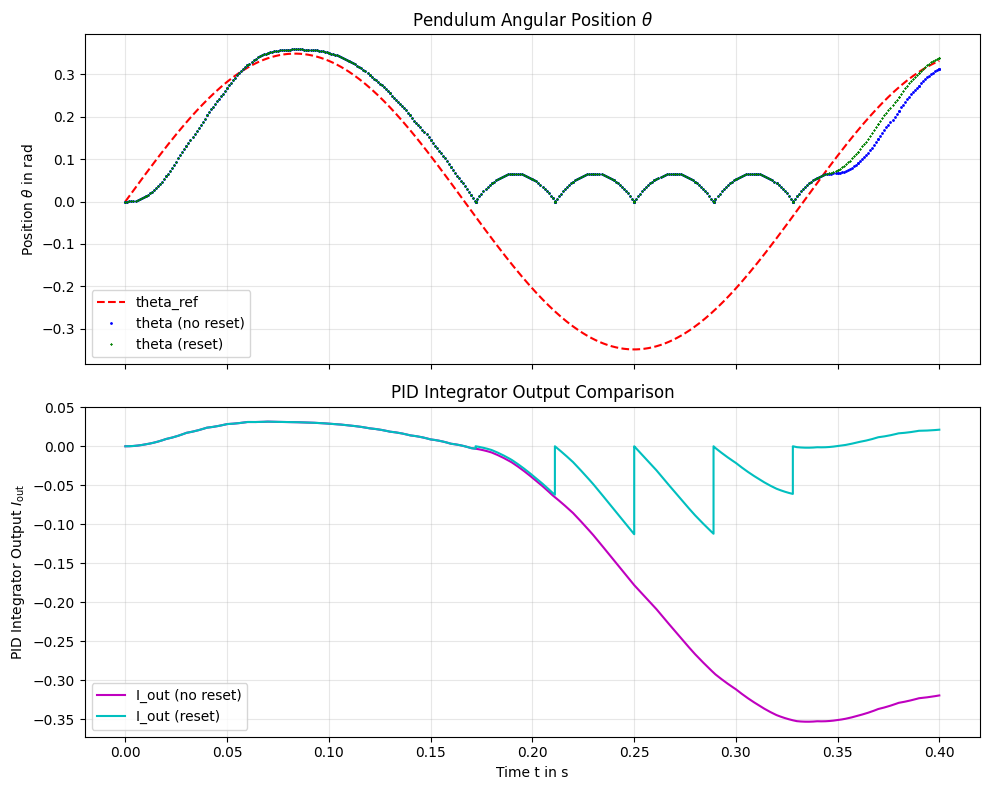

The figure illustarates the windup of the PID controller’s integrator state when the pendulum hits the wall. The error between the reference and measured angle adds up in the integrator.

When the reference position crosses the wall angle, the controller without integrator reset is not able to recover immediately, as the integrator state is large and needs to be unwound.

In contrast, the controller with integrator reset is able to recover immediately, as the integrator state is reset to zero at contact. There is no error left to unwind, and the controller can react immediately to the reference position crossing the wall angle.

Show code cell source

Hide code cell source

fig, axs = plt.subplots(2, 1, figsize=(10, 8), sharex=True)

# Plot angles
axs[0].plot(ref_sol_noreset['time'], ref_sol_noreset['theta_ref'], 'r--', label='theta_ref')
axs[0].plot(ref_sol_noreset['time'], ref_sol_noreset['theta'], 'bo', label='theta (no reset)', markersize=1)
axs[0].plot(ref_sol_reset['time'], ref_sol_reset['theta'], 'gx', label='theta (reset)', markersize=1)
axs[0].set_ylabel(r'Position $\theta$ in rad')
axs[0].set_title(r'Pendulum Angular Position $\theta$')
axs[0].legend()
axs[0].grid(alpha=0.3)

# Plot integrator output
axs[1].plot(ref_sol_noreset['time'], ref_sol_noreset['pid.I_out'], 'm-', label='I_out (no reset)')
axs[1].plot(ref_sol_reset['time'], ref_sol_reset['pid.I_out'], 'c-', label='I_out (reset)')
axs[1].set_xlabel(r'Time t in s')
axs[1].set_ylabel(r'PID Integrator Output $I_{\text{out}}$')
axs[1].set_title('PID Integrator Output Comparison')
axs[1].legend()
axs[1].grid(alpha=0.3)

plt.tight_layout()
plt.show()

5.7. Instantiate FMU Components

def print_parameteres(component: FMUComponent):
    print(f"Parameters of {component.name}:")
    for name, param in component.parameters.items():
        if '.' not in name and param is not None:
            print(f"  - {name}: {param}")

5.7.1. Setpoint

setpoint = FMUComponent(name="Setpoint",
                         fmu_path=fmu_paths['Trajectories']["SetPoint"],
                         group="Reference")
print_parameteres(setpoint)

Parameters of Setpoint:
  - amplitude: 0.3490658503988659 rad
  - frequency: 3.0 Hz
  - offset: 0.0 rad
  - phase: 0.0 rad

5.7.2. PID Controller

class PIDController(FMUComponent):
    def __init__(self, name):
        fmu_path = fmu_paths['Controllers']['PIDControllerReset_euler']
        super().__init__(name=name, fmu_path=fmu_path, group="Controller")
        self.use_reset = False  # Flag to control whether to apply reset on event

    def _handle_events_internal(self, event_names, t):
        if "wall_hit" not in event_names:
            return
        self.set_inputs({"resetI": True})
        self.do_step(t, 0)  # Perform a step to apply the resetI input
        self.set_inputs({"resetI": False})

pid = PIDController(name="PID")

print_parameteres(pid)

Parameters of PID:
  - Kd: 0.02
  - Ki: 8.0
  - Kp: 12.0
  - uMax: 1.0
  - uMin: -1.0

5.7.3. Drive

drive = FMUComponent(name="Drive",
                     fmu_path=fmu_paths['Actuators']["DriveDynamic"],
                     group="Actuator")
print_parameteres(drive)

Parameters of Drive:
  - I_max: 10.0 A
  - L_arm: 0.000121 H
  - R_arm: 0.151 Ohm
  - V_rated: 48.0 V
  - V_supply: 16.0 V
  - eta: 0.85
  - gearRatio: 60.0
  - k_t: 0.03 m·N/A
  - n_0: 12916.0 1/min

5.7.4. Pendulum

pendulum = FMUPendulum(name="Pendulum",solver="cvode")

def wall_contact_indicator(comp: FMUPendulum) -> float:
    theta = comp.get_outputs()["theta"]
    theta_wall = 0
    return theta - theta_wall

pendulum.add_event_indicator("wall_hit", func=wall_contact_indicator, direction=-1)

5.7.5. Angle Sensor and Decoder

angle_sensor = FMUComponent(name="Angle Sensor",
                             fmu_path=fmu_paths['Sensors']['AngleSensor'],
                             group="Sensors")
print_parameteres(angle_sensor)

Parameters of Angle Sensor:
  - pot_range: 4.71238898038469 rad
  - r_bottom: 20000.0 Ohm
  - r_top: 80000.0 Ohm
  - samplePeriod: 0.01 s
  - theta_max: 0.45378560551852565 rad
  - theta_min: -0.45378560551852565 rad
  - v_adc: 3.0 V
  - v_pot: 5.0 V
  - nBits: 10

angle_decoder = FMUComponent(name="Angle Decoder",
                             fmu_path=fmu_paths['Sensors']['AngleDecoder'],
                             group="Signal Processing")

print_parameteres(angle_decoder)

Parameters of Angle Decoder:
  - pot_range: 4.71238898038469 rad
  - r_bottom: 20000.0 Ohm
  - r_top: 80000.0 Ohm
  - samplePeriod: 0.01 s
  - theta_max: 0.45378560551852565 rad
  - theta_min: -0.45378560551852565 rad
  - v_adc: 3.0 V
  - v_pot: 5.0 V
  - nBits: 10

5.8. Define Connections

c1 = Connection(
    src_comp=setpoint.name,
    src_port=setpoint.output_specs["theta_ref"].name,
    dst_comp=pid.name,
    dst_port=pid.input_specs["theta_ref"].name,
)

c21 = Connection(
    src_comp=pendulum.name,
    src_port=pendulum.output_specs["theta"].name,
    dst_comp=angle_sensor.name,
    dst_port=angle_sensor.input_specs["theta"].name,
)

c22 = Connection(
    src_comp=angle_sensor.name,
    src_port=angle_sensor.output_specs["v_out"].name,
    dst_comp=angle_decoder.name,
    dst_port=angle_decoder.input_specs["v_in"].name,
)

c23 = Connection(
    src_comp=angle_decoder.name,
    src_port=angle_decoder.output_specs["theta"].name,
    dst_comp=pid.name,
    dst_port=pid.input_specs["theta_meas"].name,
)

c3 = Connection(
    src_comp=pid.name,
    src_port=pid.output_specs["u"].name,
    dst_comp=drive.name,
    dst_port=drive.input_specs["u_control"].name,
)

c4 = Connection(
    src_comp=drive.name,
    src_port=drive.output_specs["torque"].name,
    dst_comp=pendulum.name,
    dst_port=pendulum.input_specs["tau"].name,
)

c5 = Connection(
    src_comp=pendulum.name,
    src_port=pendulum.output_specs["omega"].name,
    dst_comp=drive.name,
    dst_port=drive.input_specs["omega"].name,
)

event_connection_1 = EventConnection(
    src_comp=pendulum.name,
    src_port="wall_hit",
    dst_comp=pendulum.name,
    dst_port=pendulum.input_specs["omega_invert"].name,
)

event_connection_2 = EventConnection(
    src_comp=pendulum.name,
    src_port="wall_hit",
    dst_comp=pid.name,
    dst_port=pid.input_specs["resetI"].name,
)

connections = [c1, c21, c22, c23, c3, c4, c5]
components  = [setpoint, pid, drive, pendulum, angle_decoder, angle_sensor]

5.9. Build and Initialize the System - No Reset

system = System(name="Pendulum System with Rigid Contact and PID Integrator Reset")

for comp in components:
    system.add_component(comp)

for conn in connections:
    system.add_connection(conn)

system.add_event_connection(event_connection_1)
system.add_event_connection(event_connection_2)

system.initialize(t0=0.0)

5.10. Visualize the System Graph

visualizer = SystemGraphVisualizer(system)
visualizer.visualize()

Warning: Could not load "C:\Users\flori\anaconda3\envs\env-312\Library\bin\gvplugin_pango.dll" - It was found, so perhaps one of its dependents was not.  Try ldd.
Warning: Could not load "C:\Users\flori\anaconda3\envs\env-312\Library\bin\gvplugin_pango.dll" - It was found, so perhaps one of its dependents was not.  Try ldd.

5.11. Baseline Run

t = 0
t_end = 0.4
dt = 5e-4

system.reset()
system.initialize(t0=t)
system.run(t0=t, tf=t_end, dt=dt)

5.12. Collect Results

history = system.get_history()

t_set_point = history[setpoint.name][0]
theta_ref = history[setpoint.name][1]['theta_ref']

t_pendulum = history[pendulum.name][0]
theta_pendulum = history[pendulum.name][1]['theta']

t_pid = history[pid.name][0]
I_out = history[pid.name][1]['I_out']

5.13. Plot: Baseline Tracking vs Reference

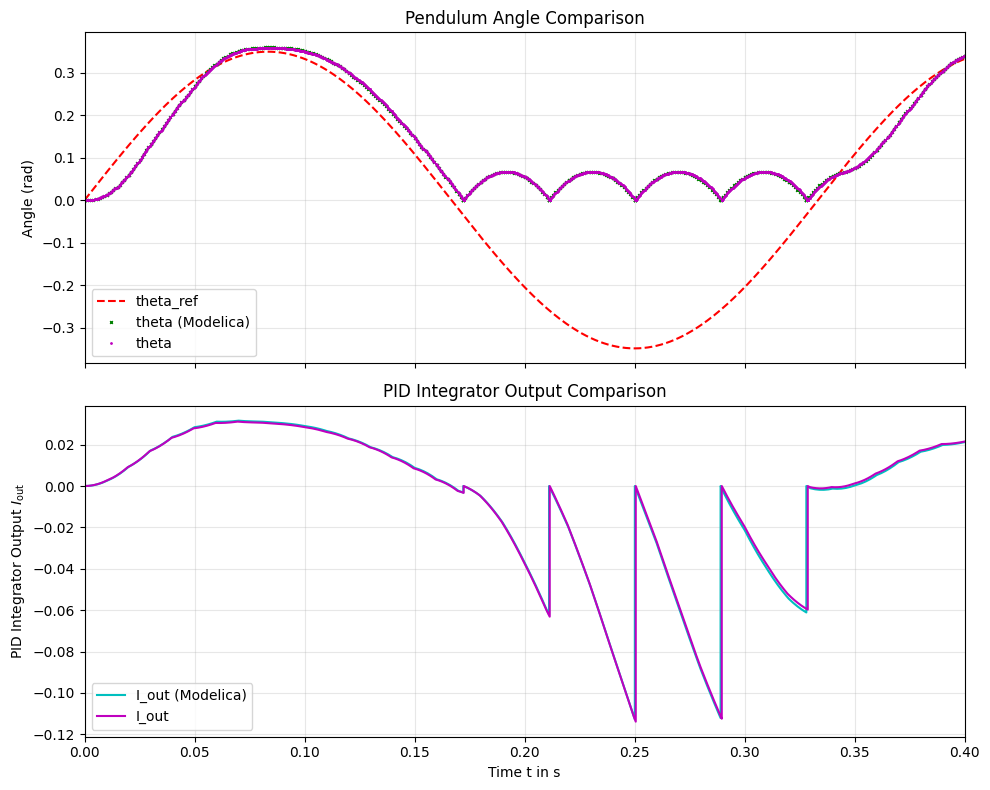

The figure below compares the pendulum angle and PID integrator output from the co-simulation with the Modelica reference.

It can be observed that the co-simulation using the hybrid master algorithm closely follows the Modelica reference.

The contact events are captured accurately, and the integrator output shows the expected reset behavior at contact.

The deviations between the co-simulation and reference are minimal, but originate from the different numerical solvers and fixed vs variable step sizes.

Show code cell source

Hide code cell source

fig, axs = plt.subplots(2, 1, figsize=(10, 8), sharex=True)

# Plot angles
axs[0].plot(ref_sol_noreset['time'], ref_sol_noreset['theta_ref'], 'r--', label='theta_ref')
axs[0].plot(ref_sol_reset['time'], ref_sol_reset['theta'], 'gx', label='theta (Modelica)', markersize=2)
axs[0].plot(t_pendulum, theta_pendulum, 'mo', label='theta', markersize=1)
axs[0].set_ylabel('Angle (rad)')
axs[0].set_title('Pendulum Angle Comparison')
axs[0].legend()
axs[0].grid(alpha=0.3)

# Plot integrator output
axs[1].plot(ref_sol_reset['time'], ref_sol_reset['pid.I_out'], 'c-', label='I_out (Modelica)')
axs[1].plot(t_pid, I_out, 'm-', label='I_out')
axs[1].set_xlabel(r'Time t in s')
axs[1].set_ylabel(r'PID Integrator Output $I_{\text{out}}$')
axs[1].set_title('PID Integrator Output Comparison')
axs[1].legend()
axs[1].grid(alpha=0.3)

axs[1].set_xlim(0, t_end)

plt.tight_layout()
plt.show()

5.14. Summary

• Co-simulation trajectories converge toward the monolithic reference as dt decreases.

• Resetting the PID integrator reduces windup after contact events.
