3. Quantization and Sampling

3.1. Goal

Show how encoder/decoder resolution and sampling period affect tracking accuracy.

3.2. Model Map

3.3. Assumptions and Scope

• No wall contact

• Fixed-step co-simulation; reference uses variable-step DASSL

3.4. Prerequisites and Setup

Show code cell content

Hide code cell content

from pathlib import Path
import sys
_repo = Path.cwd()
while _repo != _repo.parent and not (_repo / "pyproject.toml").exists():
    _repo = _repo.parent
sys.path.insert(0, str(_repo))

import numpy as np
import matplotlib.pyplot as plt

from demos.ControlledPendulum.src.master_pendulum import MasterPendulum
import demos.ControlledPendulum.src.master_pendulum.components.fem.pendulum_config as config

from syssimx import FMUComponent, Connection, System, SystemGraphVisualizer

3.5. Discover FMUs

PLATFORM = sys.platform
demo_dir_path = _repo / "demos" / "ControlledPendulum"
package_path = Path(demo_dir_path / "src/modelica/ControlledPendulum")
fmu_output_dir = Path(demo_dir_path / f"artifacts/fmus/{PLATFORM}")

fmu_paths = {}
for subdir in fmu_output_dir.iterdir():
    if subdir.is_dir():
        fmu_paths[subdir.name] = {}
        for fmu_file in subdir.glob("*.fmu"):
            fmu_paths[subdir.name][fmu_file.stem] = fmu_file
        for subsubdir in subdir.iterdir():
            fmu_paths[subdir.name][subsubdir.name] = {}
            if subsubdir.is_dir():
                fmu_paths[subdir.name][subsubdir.name] = {}
                for fmu_file in subsubdir.glob("*.fmu"):
                    fmu_paths[subdir.name][subsubdir.name][fmu_file.stem] = fmu_file
    else:
        fmu_paths[subdir.stem] = subdir

3.6. Modelica Reference Simulation

We refer to the monolithic Modelica simulation as “Modelica” in the following. The simulation results are obtained by running the Quantization example model in OpenModelica using the OMPython interface. The model can be found in the ControlledPendulum package

from OMPython import ModelicaSystem

reference = ModelicaSystem(fileName=str(package_path / "package.mo"),
                           modelName="ControlledPendulum.Examples.NoContact.Quantization")
reference.buildModel()

3.6.1. Reference Sensor Parameters

ref_params = reference.getParameters()

ref_sensor_params = {
    "nBits": int(ref_params['angle_sensor.nBits']),
    "samplePeriod": float(ref_params['angle_sensor.samplePeriod']),
    "decoder_nBits": int(ref_params['angle_decoder.nBits']),
    "decoder_samplePeriod": float(ref_params['angle_decoder.samplePeriod']),
}

print("Reference sensor parameters →")
print(f"  nBits: {ref_sensor_params['nBits']}")
print(f"  samplePeriod [s]: {ref_sensor_params['samplePeriod']}")

Reference sensor parameters →
  nBits: 10
  samplePeriod [s]: 0.01

3.6.2. Run Reference Simulation

reference.simulate(simargs={
    "stopTime": '1.0',
})
ref_sol_names = ('time', 'theta', 'theta_meas')
ref_sol = {name: reference.getSolutions(name).flatten() for name in ref_sol_names}

3.7. Instantiate FMU Components

def print_parameteres(component: FMUComponent):
    print(f"Parameters of {component.name}:")
    for name, param in component.parameters.items():
        if '.' not in name and param is not None:
            print(f"  - {name}: {param}")

3.7.1. Setpoint

setpoint = FMUComponent(name="Setpoint",
                         fmu_path=fmu_paths['Trajectories']["SetPoint"],
                         group="Reference")
print_parameteres(setpoint)

Parameters of Setpoint:
  - amplitude: 0.3490658503988659 rad
  - frequency: 2.0 Hz
  - offset: 0.0 rad
  - phase: 0.0 rad

3.7.2. PID Controller

pid = FMUComponent(name="PID",
                   fmu_path=fmu_paths['Controllers']["PIDController"],
                   group="Controller")
print_parameteres(pid)

Parameters of PID:
  - Kd: 0.02
  - Ki: 5.0
  - Kp: 10.0
  - uMax: 1.0
  - uMin: -1.0

3.7.3. Drive

drive = FMUComponent(name="Drive",
                     fmu_path=fmu_paths['Actuators']["DriveDynamic"],
                     group="Actuator")
print_parameteres(drive)

Parameters of Drive:
  - I_max: 10.0 A
  - L_arm: 0.000121 H
  - R_arm: 0.151 Ohm
  - V_rated: 48.0 V
  - V_supply: 16.0 V
  - eta: 0.85
  - gearRatio: 60.0
  - k_t: 0.03 m·N/A
  - n_0: 12916.0 1/min

3.7.4. Pendulum

pendulum = FMUComponent(name="Pendulum",
                        fmu_path=fmu_paths['Plants']["Pendulum_cvode"],
                        group="Plant")
print_parameteres(pendulum)

Parameters of Pendulum:
  - J: 0.0442268222 kg·m²
  - L: 0.181650853 m
  - b_viscous: 0.0 m·N·s/rad
  - g: 9.81 m/s²
  - m: 1.08429606 kg
  - omega_eps: 0.001 rad/s
  - omega_start: 0.0 rad/s
  - tau_c: 0.0 m·N
  - theta_start: 0.0 rad

3.7.5. Angle Sensor and Decoder

angle_sensor = FMUComponent(name="Angle Sensor",
                             fmu_path=fmu_paths['Sensors']['AngleSensor'],
                             group="Sensors")
print_parameteres(angle_sensor)

Parameters of Angle Sensor:
  - pot_range: 4.71238898038469 rad
  - r_bottom: 20000.0 Ohm
  - r_top: 80000.0 Ohm
  - samplePeriod: 0.01 s
  - theta_max: 0.45378560551852565 rad
  - theta_min: -0.45378560551852565 rad
  - v_adc: 3.0 V
  - v_pot: 5.0 V
  - nBits: 10

angle_decoder = FMUComponent(name="Angle Decoder",
                             fmu_path=fmu_paths['Sensors']['AngleDecoder'],
                             group="Signal Processing")

print_parameteres(angle_decoder)

Parameters of Angle Decoder:
  - pot_range: 4.71238898038469 rad
  - r_bottom: 20000.0 Ohm
  - r_top: 80000.0 Ohm
  - samplePeriod: 0.01 s
  - theta_max: 0.45378560551852565 rad
  - theta_min: -0.45378560551852565 rad
  - v_adc: 3.0 V
  - v_pot: 5.0 V
  - nBits: 10

3.8. Define Connections

c1 = Connection(
    src_comp=setpoint.name,
    src_port=setpoint.output_specs["theta_ref"].name,
    dst_comp=pid.name,
    dst_port=pid.input_specs["theta_ref"].name,
)

c2 = Connection(
    src_comp=pendulum.name,
    src_port=pendulum.output_specs["theta"].name,
    dst_comp=angle_sensor.name,
    dst_port=angle_sensor.input_specs["theta"].name,
)

c3 = Connection(
    src_comp=angle_sensor.name,
    src_port=angle_sensor.output_specs["v_out"].name,
    dst_comp=angle_decoder.name,
    dst_port=angle_decoder.input_specs["v_in"].name,
)

c4 = Connection(
    src_comp=angle_decoder.name,
    src_port=angle_decoder.output_specs["theta"].name,
    dst_comp=pid.name,
    dst_port=pid.input_specs["theta_meas"].name,
)

c5 = Connection(
    src_comp=pid.name,
    src_port=pid.output_specs["u"].name,
    dst_comp=drive.name,
    dst_port=drive.input_specs["u_control"].name,
)

c6 = Connection(
    src_comp=drive.name,
    src_port=drive.output_specs["torque"].name,
    dst_comp=pendulum.name,
    dst_port=pendulum.input_specs["tau"].name,
)

c7 = Connection(
    src_comp=pendulum.name,
    src_port=pendulum.output_specs["omega"].name,
    dst_comp=drive.name,
    dst_port=drive.input_specs["omega"].name,
)

connections = [c1, c2, c3, c4, c5, c6, c7]
components = [setpoint, pid, drive, angle_sensor, angle_decoder, pendulum]

3.9. Build and Initialize the System

system = System(name="Pendulum System with Quantization")

for comp in components:
    system.add_component(comp)

for conn in connections:
    system.add_connection(conn)

system.initialize(t0=0.0)

3.10. Visualize the System Graph

visualizer = SystemGraphVisualizer(system)
visualizer.visualize()

Warning: Could not load "C:\Users\flori\anaconda3\envs\env-312\Library\bin\gvplugin_pango.dll" - It was found, so perhaps one of its dependents was not.  Try ldd.
Warning: Could not load "C:\Users\flori\anaconda3\envs\env-312\Library\bin\gvplugin_pango.dll" - It was found, so perhaps one of its dependents was not.  Try ldd.

3.11. Baseline Run

angle_sensor.set_parameters(
    nBits=ref_sensor_params["nBits"],
    samplePeriod=ref_sensor_params["samplePeriod"],
)
angle_decoder.set_parameters(
    nBits=ref_sensor_params["decoder_nBits"],
    samplePeriod=ref_sensor_params["decoder_samplePeriod"],
)

t = 0.0
dt = 0.001
t_end = 1.0

system.run(t, t_end, dt)

print(f"Simulation config → dt [s]: {dt}, t_end [s]: {t_end}, nBits: {ref_sensor_params['nBits']}, samplePeriod [s]: {ref_sensor_params['samplePeriod']}")

Simulation config → dt [s]: 0.001, t_end [s]: 1.0, nBits: 10, samplePeriod [s]: 0.01

3.12. Collect Results

history = system.get_history()

t_setpoint = history["Setpoint"][0]
theta_ref = history["Setpoint"][1]["theta_ref"]

t_pendulum = history["Pendulum"][0]
theta_pendulum = history["Pendulum"][1]["theta"]

t_decoder = history["Angle Decoder"][0]
theta_decoder = history["Angle Decoder"][1]["theta"]

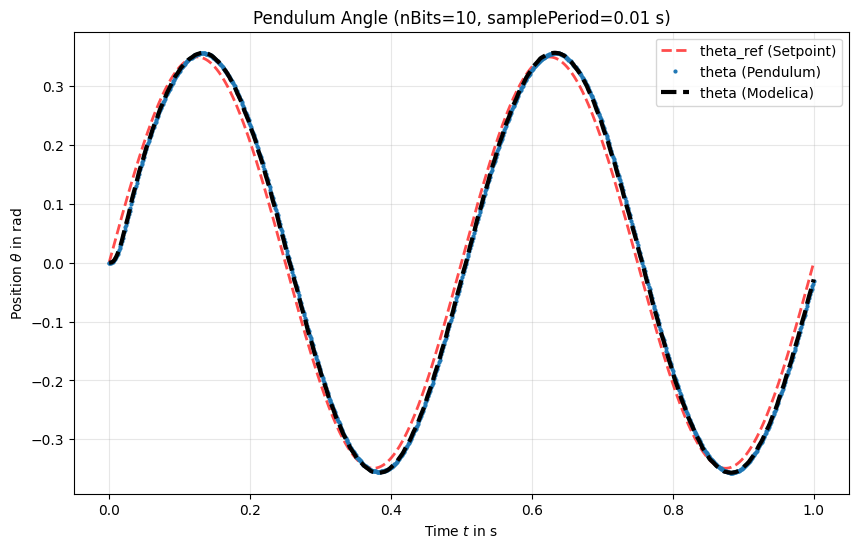

3.13. Plot: Baseline Tracking vs Reference

This baseline uses the reference sensor settings.

Show code cell source

Hide code cell source

plt.figure(figsize=(10, 6))
plt.plot(t_setpoint, theta_ref, label="theta_ref (Setpoint)", color='red', linestyle='--', linewidth=2, alpha=0.7)
plt.plot(t_pendulum, theta_pendulum, 'o', label="theta (Pendulum)", markersize=2)
plt.plot(ref_sol['time'], ref_sol['theta'], label="theta (Modelica)", color='black', linestyle='--', linewidth=3)
plt.xlabel(r"Time $t$ in s")
plt.ylabel(r"Position $\theta$ in rad")
plt.title(f"Pendulum Angle (nBits={ref_sensor_params['nBits']}, samplePeriod={ref_sensor_params['samplePeriod']} s)")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

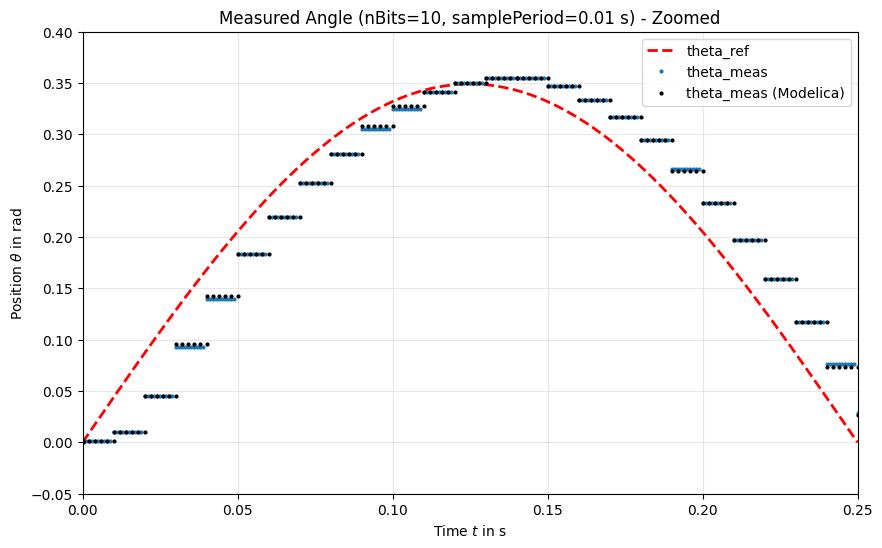

Show code cell source

Hide code cell source

plt.figure(figsize=(10, 6))
plt.plot(t_setpoint, theta_ref, label="theta_ref", color='red', linestyle='--', linewidth=2)
plt.plot(t_decoder, theta_decoder, 'o', label="theta_meas", markersize=2)
plt.plot(ref_sol['time'], ref_sol['theta_meas'], 'o', label="theta_meas (Modelica)", color='black', markersize=2)
plt.xlim(0, 0.25)
plt.ylim(-0.05, 0.4)
plt.xlabel(r"Time $t$ in s")
plt.ylabel(r"Position $\theta$ in rad")
plt.title(f"Measured Angle (nBits={ref_sensor_params['nBits']}, samplePeriod={ref_sensor_params['samplePeriod']} s) - Zoomed")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

3.14. Experiment Design

We vary the ADC resolution and sampling period while keeping all other parameters fixed.

3.14.1. Helper: Run a Quantization Case

def run_quantization_case(label: str, n_bits: int, sample_period: float, dt: float = 0.01):
    system.reset()

    angle_sensor.set_parameters(nBits=n_bits, samplePeriod=sample_period)
    angle_decoder.set_parameters(nBits=n_bits, samplePeriod=sample_period)

    system.initialize(t0=0.0)

    t = 0.0
    t_end = 1.0

    system.run(t, t_end, dt)

    print(f"{label} → dt [s]: {dt}, nBits: {n_bits}, samplePeriod [s]: {sample_period}")

    dec_hist = angle_decoder.get_history()
    t_dec = dec_hist["theta"]["time"]
    theta_dec = dec_hist["theta"]["values"]

    pendulum_history = pendulum.get_history()
    t_pendulum = pendulum_history['theta']['time']
    theta_pendulum = pendulum_history['theta']['values']

    return {
        "label": label,
        "t_dec": t_dec,
        "theta_dec": theta_dec,
        "t_pendulum": t_pendulum,
        "theta_pendulum": theta_pendulum,
    }

3.15. Quantization Cases

case_high = run_quantization_case(label="High (12-bit, 5 ms)",
                                  n_bits=12,
                                  sample_period=0.005,
                                  dt=0.001)
case_low = run_quantization_case(label="Low (8-bit, 20 ms)",
                                 n_bits=8,
                                 sample_period=0.02, dt=0.001)

Show code cell output

Hide code cell output

High (12-bit, 5 ms) → dt [s]: 0.001, nBits: 12, samplePeriod [s]: 0.005
Low (8-bit, 20 ms) → dt [s]: 0.001, nBits: 8, samplePeriod [s]: 0.02

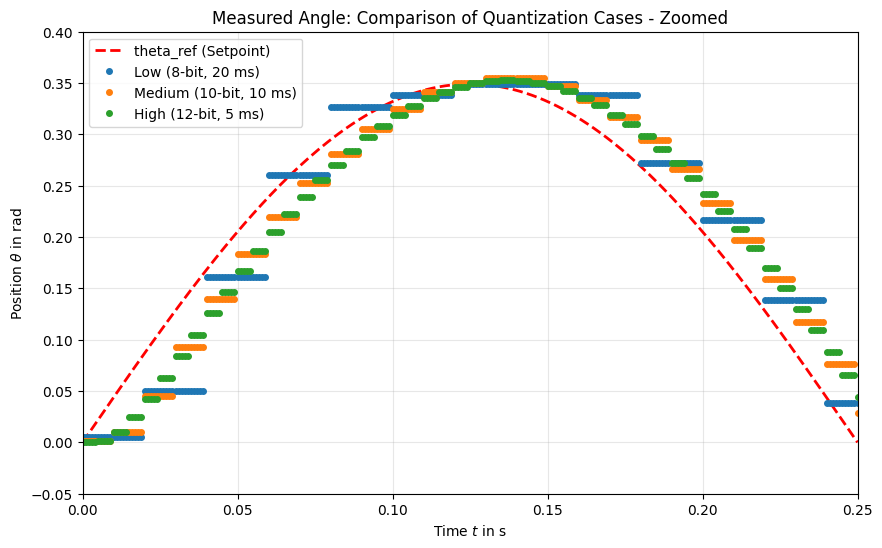

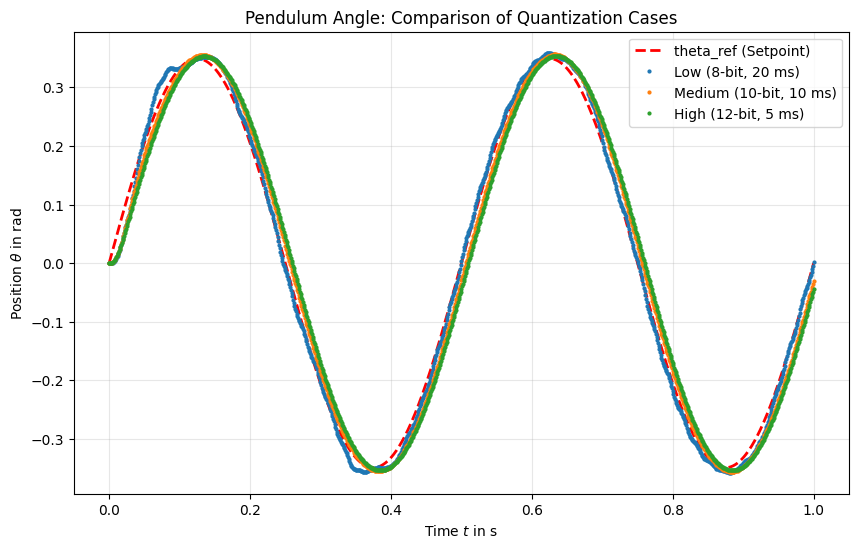

3.16. Plot: Decoder Outputs

This plot shows how sampling and quantization affect the decoded angle. It can be clearly seen that the low-resolution case (5-bit, 20 ms) has a much coarser output compared to the medium (10-bit, 10 ms) and high-resolution (12-bit, 5 ms) cases. The medium and high-resolution cases show more closely spaced points, indicating finer quantization levels and more frequent sampling.

Further the pendulum angle can follow the reference more closely in the medium and high-resolution cases, while the low-resolution case shows an oscillatory behavior due to the coarse quantization and less frequent sampling. The PID controller struggles to stabilize the pendulum in the low-resolution case, while it performs much better in the medium and high-resolution cases.

Show code cell source

Hide code cell source

plt.figure(figsize=(10, 6))
plt.plot(t_setpoint, theta_ref, label="theta_ref (Setpoint)", color='red', linestyle='--', linewidth=2)
plt.plot(case_low['t_pendulum'], case_low['theta_pendulum'], 'o', label=case_low['label'], markersize=2)
plt.plot(t_pendulum, theta_pendulum, 'o', label="Medium (10-bit, 10 ms)", markersize=2)
plt.plot(case_high['t_pendulum'], case_high['theta_pendulum'], 'o', label=case_high['label'], markersize=2)
plt.xlabel(r"Time $t$ in s")
plt.ylabel(r"Position $\theta$ in rad")
plt.title(f"Pendulum Angle: Comparison of Quantization Cases")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

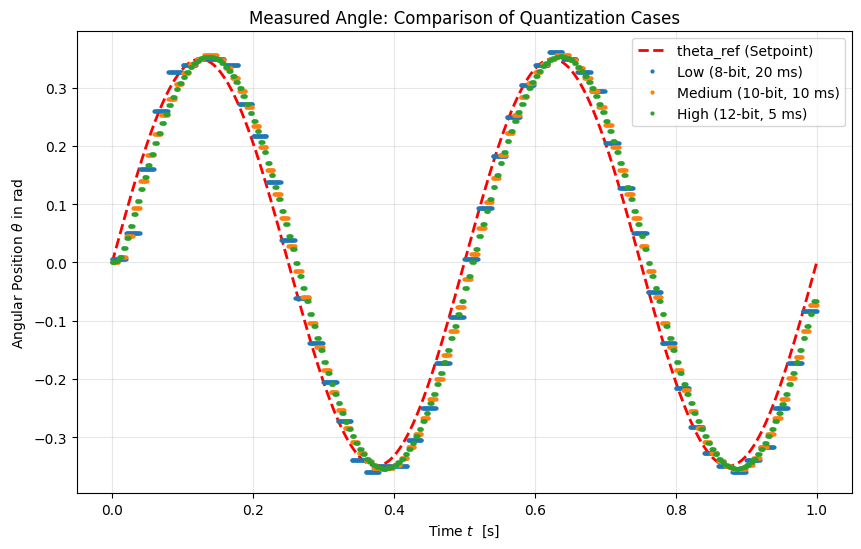

Show code cell source

Hide code cell source

plt.figure(figsize=(10, 6))
plt.plot(t_setpoint, theta_ref, label="theta_ref (Setpoint)", color='red', linestyle='--', linewidth=2)
plt.plot(case_low['t_dec'], case_low['theta_dec'], 'o', label=case_low['label'], markersize=2)
plt.plot(t_decoder, theta_decoder, 'o', label="Medium (10-bit, 10 ms)", markersize=2)
plt.plot(case_high['t_dec'], case_high['theta_dec'], 'o', label=case_high['label'], markersize=2)
plt.xlabel(r"Time $t$  [s]")
plt.ylabel(r"Angular Position $\theta$ in rad")
plt.title(f"Measured Angle: Comparison of Quantization Cases")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

Show code cell source

Hide code cell source

plt.figure(figsize=(10, 6))
plt.plot(t_setpoint, theta_ref, label="theta_ref (Setpoint)", color='red', linestyle='--', linewidth=2)
plt.plot(case_low['t_dec'], case_low['theta_dec'], 'o', label=case_low['label'], markersize=4)
plt.plot(t_decoder, theta_decoder, 'o', label="Medium (10-bit, 10 ms)", markersize=4)
plt.plot(case_high['t_dec'], case_high['theta_dec'], 'o', label=case_high['label'], markersize=4)
plt.xlim(0, 0.25)
plt.ylim(-0.05, 0.4)
plt.xlabel(r"Time $t$ in s")
plt.ylabel(r"Position $\theta$ in rad")
plt.title(f"Measured Angle: Comparison of Quantization Cases - Zoomed")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

3.17. Summary

• Higher resolution and faster sampling reduce quantization artifacts in theta_meas.

• Control performance degrades at low resolution and slow sampling.
