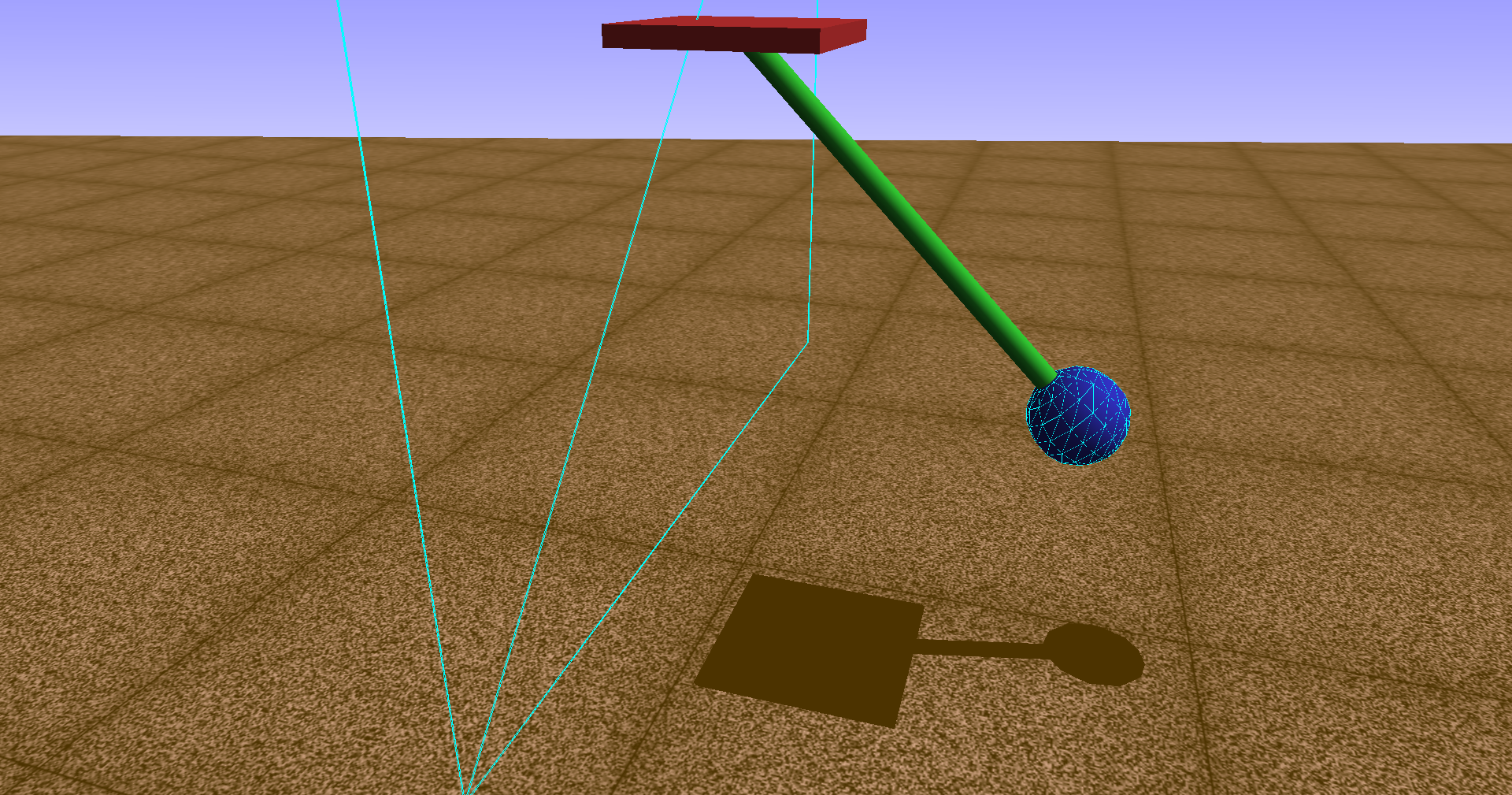

Visualization of the OpenSim Pendulum Model with wall contact.

Visualization of the OpenSim Pendulum Model with wall contact.#

This sequence builds a rigid-body pendulum in OpenSim step by step, from basic model construction to torque actuation and impact/contact behavior.

Main takeaways across the three notebooks:

  • The pendulum is modeled with OpenSim’s multibody hierarchy (Model -> Body -> Joint -> Coordinate) and simulated with the Manager.

  • The baseline model uses a fixed base (WeldJoint) and a 1-DOF pendulum (PinJoint) with gravity-driven forward dynamics.

  • Torque input is added through CoordinateActuator, using overrideActuation for direct time-step-wise torque control.

  • Contact is modeled with ContactSphere + ContactHalfSpace and HuntCrossleyForce, enabling physically motivated collisions with dissipation.

What each tutorial does:

  1. 01_opensim_pendulum_basics

    • Builds the pendulum model from scratch (bodies, joints, coordinate, visualization geometry).

    • Sets initial conditions and runs free-swing simulation under gravity.

    • Extracts and plots angle/velocity/acceleration histories and performs a basic parameter comparison.

  2. 02_opensim_pendulum_torque

    • Adds a pivot torque via CoordinateActuator and direct actuation override.

    • Runs constant-torque cases with gravity off and on.

    • Verifies OpenSim trajectories against an analytical rigid-body ODE reference and studies torque magnitude effects.

  3. 03_opensim_pendulum_contact

    • Extends the actuated model with wall contact using Hunt-Crossley force formulation.

    • Simulates free-swing and torque-driven repeated impacts.

    • Studies how dissipation controls rebound energy loss and how stiffness trades penetration against collision sharpness/numerical stiffness.
