Modelica / FMU

Modelica / FMU#

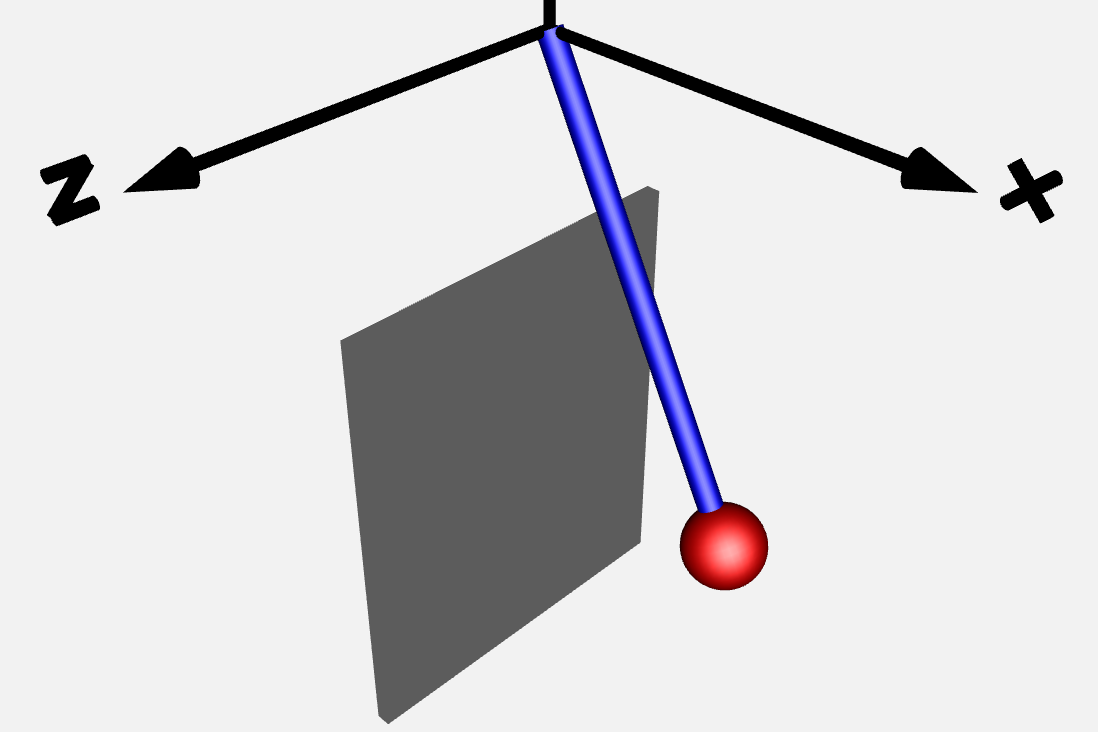

Visualization of the Modelica Pendulum Model with wall contact.

Visualization of the Modelica Pendulum Model with wall contact.#

This sequence covers a Modelica pendulum workflow from direct simulation to FMI co-simulation, then moves into hybrid event handling with rollback-based event localization.

Main takeaways across the four notebooks:

  • The same pendulum dynamics are used in direct Modelica simulation (OMPython.ModelicaSystem) and FMU co-simulation (syssimx.FMUComponent).

  • Solver and macro-step choices strongly affect co-simulation accuracy, especially around events.

  • Discrete contact in FMUs exposes event-time sensitivity at communication boundaries when no localization strategy is used.

  • Robust hybrid simulation requires reliable rollback; solver backend (Euler vs CVode) changes how rollback must be implemented.

What each tutorial does:

  1. 01_modelica_pendulum_basics

    • Introduces the pendulum Modelica model with input/output interfaces.

    • Compares direct Modelica solver behavior (dassl, cvode, euler) and FMU behavior under the same forcing.

    • Exports FMI 2.0 co-simulation FMUs and quantifies step-size/solver accuracy differences.

  2. 02_modelica_pendulum_contact

    • Extends the model with discrete wall contact using when and reinit.

    • Compares direct Modelica event localization against FMU co-simulation at different macro step sizes.

    • Shows that coarse communication steps reduce event-time observability accuracy.

  3. 03_fmu_rollback_mechanism

    • Validates rollback behavior with practical snapshot/restore tests after FMU export.

    • Confirms solver-dependent behavior: Euler supports practical FMU-state restore in this setup, while CVode needs reinitialization-based restore.

    • Establishes rollback constraints needed for hybrid event localization.

  4. 04_fmu_hybrid_pendulum

    • Implements a custom hybrid FMU wrapper with event indicators, rollback, and external event handling.

    • Uses the HybridAlgorithm for event localization and discrete updates (impact handling) without embedding events in the Modelica source.

    • Benchmarks Euler vs CVode trade-offs for hybrid simulations with frequent events.
