1. Modelica Pendulum: Basics#
This tutorial introduces the pendulum model in Modelica, we simulate it as ModelicaSystem using OMPython and exports it as an FMU for co-simulation with syssimx.
1.1. Overview#
We use one pendulum model in two ways:
Simulate directly with
OMPython.ModelicaSystem.Export to FMI 2.0 Co-Simulation FMUs and simulate with
syssimx.FMUComponent.
In both cases we compare solver behavior under the same constant torque input for different time step sizes.
1.2. Learning Goals#
Understand the pendulum dynamics represented in Modelica.
Understand Modelica block interfaces (
RealInput,RealOutput) for tool integration.Compare solver behavior in direct Modelica simulation (
dassl,cvode,euler).Export FMI 2.0 co-simulation FMUs and compare
cvodevseulerFMU behavior.Understand solver constraints relevant for later hybrid/rollback tutorials.
1.3. Prerequisites and Setup#
from pathlib import Path
import numpy as np
import matplotlib.pyplot as plt
from OMPython import ModelicaSystem
from syssimx import FMUComponent
1.4. Physical Model and Governing Equation#
For a pendulum with inertia I, mass m, center-of-mass distance L, gravity g, and applied torque tau, we use
The first-order state form is
Modelica uses a physical/acausal equation-based style: you declare variables and equations, and the tool derives the executable simulation form.
1.5. Modelica Implementation#
The model file defines parameters, one torque input, and three outputs (theta, omega, alpha).
These interface variables are used within the FMUComponent for the definition of the input and output ports.
model Pendulum
// Imports
import Modelica.Constants.pi;
// Parameters
parameter Real m(unit="kg") = 40;
parameter Real L(unit="m") = 0.6;
parameter Real theta0(unit="rad") = 0;
parameter Real omega0(unit="rad/s") = 0;
parameter Real g(unit="m/s2") = 9.81;
parameter Real inertia(unit="kg.m2") = 20;
// Input torque at the pivot
Modelica.Blocks.Interfaces.RealInput torque(unit="N.m");
// Outputs
Modelica.Blocks.Interfaces.RealOutput theta(unit="rad");
Modelica.Blocks.Interfaces.RealOutput omega(unit="rad/s");
Modelica.Blocks.Interfaces.RealOutput alpha(unit="rad/s2") = der(omega);
initial equation
theta = theta0;
omega = omega0;
equation
der(theta) = omega;
der(omega) = -(m * g * L / inertia) * sin(theta) + torque / inertia;
end Pendulum;
model_file = Path("docs/tutorials/tool_integration/modelica/Pendulum.mo")
1.6. Simulate ModelicaSystem#
modelica_pendulum = ModelicaSystem(
fileName=str(model_file),
modelName="Pendulum",
)
modelica_pendulum.buildModel()
for name, value in modelica_pendulum.getParameters().items():
print(f"{name:>7}: {value}")
theta0 = 0.0
omega0 = 0.0
modelica_pendulum.setParameters({"theta0": str(theta0), "omega0": str(omega0)})
L: 0.6
g: 9.81
inertia: 20.0
m: 40.0
omega0: 0.0
theta0: 0.0
t_stop = 2.0
dt_ref = 1e-4
tol_ref = 1e-8
options = modelica_pendulum.getSimulationOptions()
options['stopTime'] = f"{t_stop}"
options['stepSize'] = f"{dt_ref}"
options['tolerance'] = f"{tol_ref}"
options['solver'] = 'dassl'
modelica_pendulum.setSimulationOptions(options)
torque = 30
modelica_pendulum.setInputs({'torque': f"{torque}"})
modelica_pendulum.simulate()
ref_results = {}
solutions = ('time', 'theta')
for solution in solutions:
ref_results[solution] = modelica_pendulum.getSolutions(solution).flatten()
plt.figure(figsize=(10, 5))
plt.plot(ref_results['time'], ref_results['theta'])
plt.xlabel('Time (s)')
plt.ylabel('Pendulum Angle (rad)')

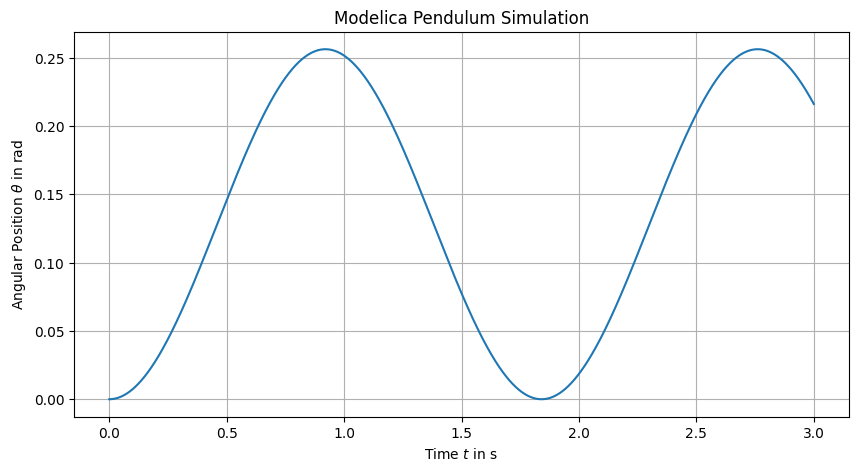

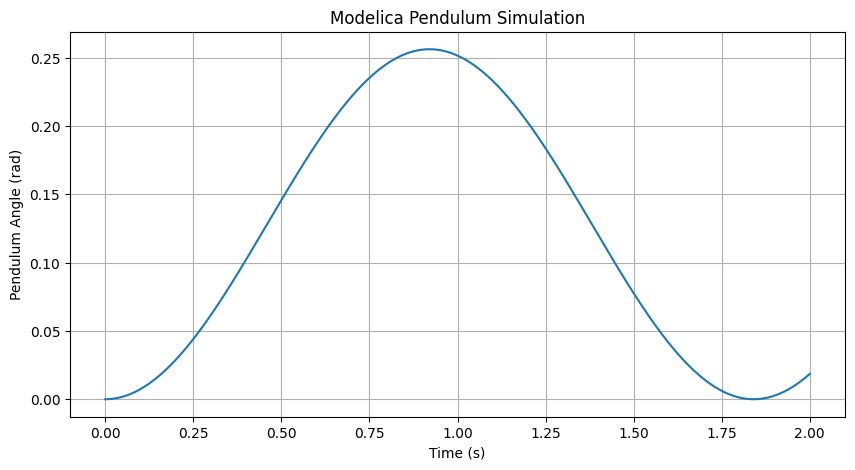

plt.title('Modelica Pendulum Simulation')
plt.grid()
plt.show()
1.7. Export to FMU#
For this workflow we export the ModelicaSystem as FMI 2.0 Co-Simulation FMUs.
By default, the co-simulation FMU exported from OMPython uses euler as the solver. We also create a cvode FMU for comparison.
We specify the solver using the commandLineOptions argument of convertMo2Fmu:
modelica_cvode = ModelicaSystem(
fileName=str(model_file),
modelName="Pendulum",
commandLineOptions=["--fmiFlags=s:cvode"],
)
modelica_cvode.buildModel()
modelica_euler = ModelicaSystem(
fileName=str(model_file),
modelName="Pendulum",
commandLineOptions=["--fmiFlags=s:euler"],
)
modelica_euler.buildModel()
fmu_path_cvode = modelica_cvode.convertMo2Fmu(version="2.0", fmuType="cs")
fmu_path_euler = modelica_euler.convertMo2Fmu(version="2.0", fmuType="cs")
CVODE FMU: /tmp/tmppyj918ec/Pendulum.fmu
Euler FMU: /tmp/tmpv432dd4v/Pendulum.fmu
1.8. Simulate FMUComponents#
We run both FMUs with the same initial conditions and same constant torque input. To show step-size effects clearly, we test two communication step sizes.
fmu_components = {
"cvode": FMUComponent(name="PendulumCVODE", fmu_path=fmu_path_cvode),
"euler": FMUComponent(name="PendulumEuler", fmu_path=fmu_path_euler),
}
dt_values = [1e-2, 1e-3, 1e-4]
fmu_results = {}
for solver_name, comp in fmu_components.items():
fmu_results[solver_name] = {}
for dt in dt_values:
dt_results = {}
comp.reset()
comp.set_parameters(theta0=theta0, omega0=omega0)
comp.initialize(t0=0.0)
comp.set_inputs({'torque': torque})
t_vals = np.arange(0.0, t_stop + dt, dt)
for t in t_vals:
comp.do_step(t, dt)
history = comp.get_history()
dt_results['theta'] = history['theta']
fmu_results[solver_name][f"{dt}"] = dt_results

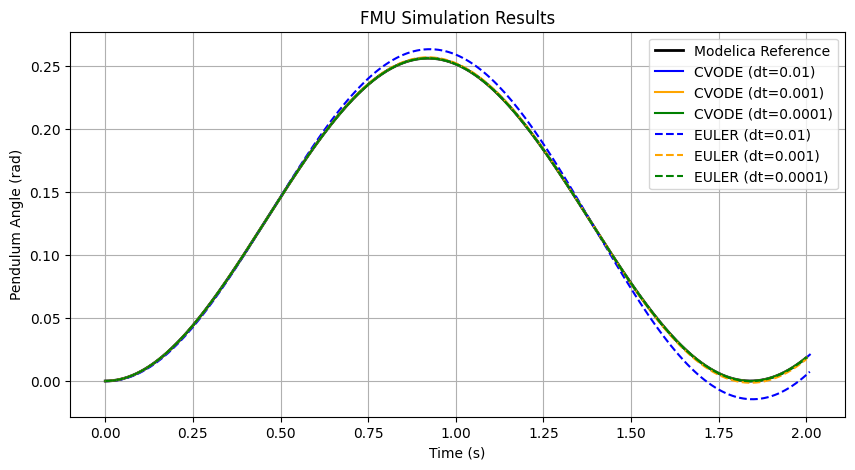

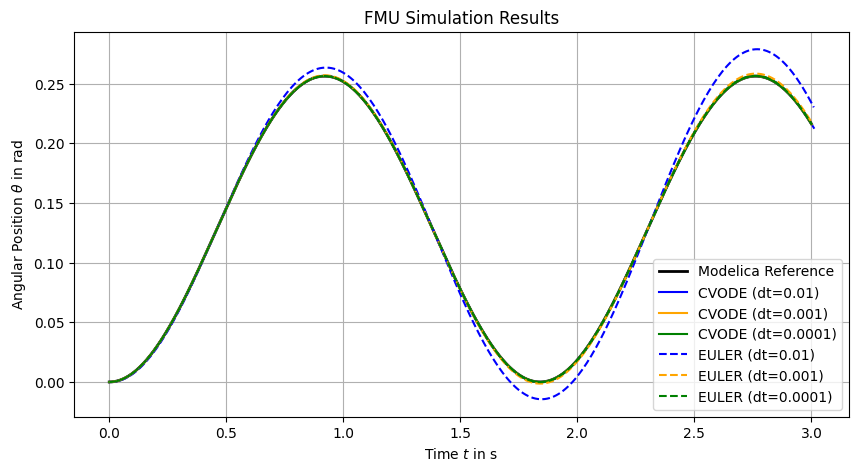

1.9. Conclusion#
We have simulated the Modelica pendulum model both directly and via FMU co-simulation, comparing solver behaviors and step-size effects.

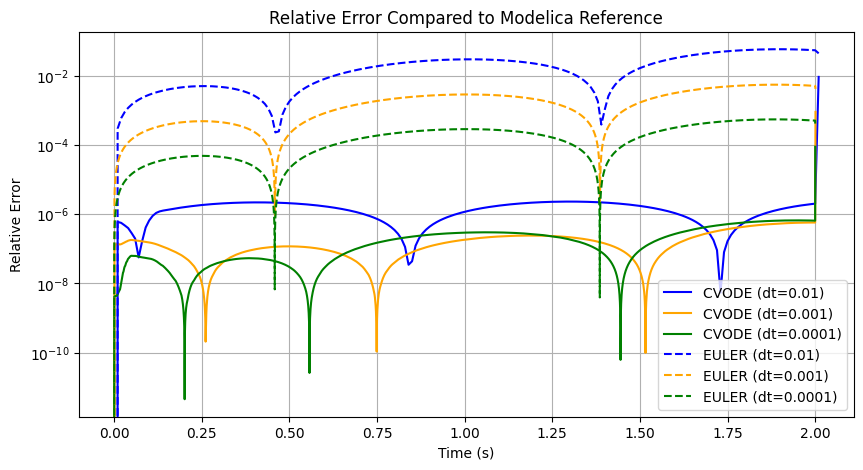

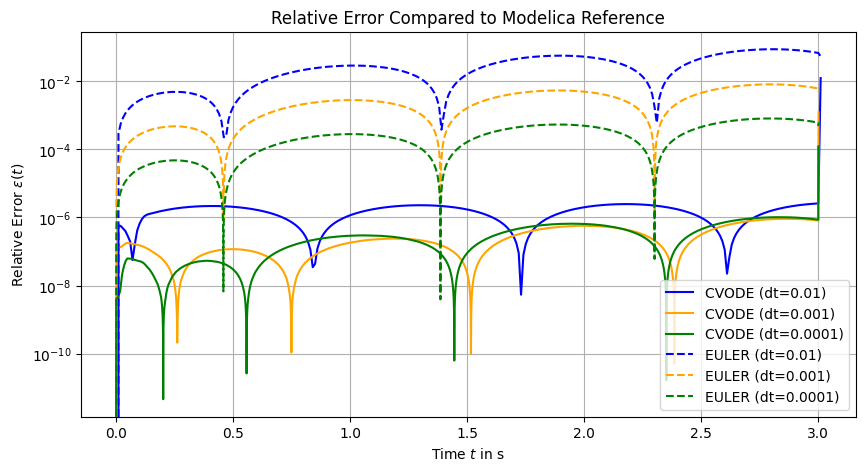

The figure above shows the relative errors in the pendulum angle theta for different solvers and step sizes compared to the reference solution obtained from the direct Modelica simulation using the dassl solver with a small tolerance.
It can be concluded that:
The
cvodesolver performs significantly better than theeulersolver for the same step sizes.Decreasing the step size improves accuracy for both solvers, but
cvodeachieves lower errors even at larger step sizes.The direct Modelica simulation with
dasslprovides a reliable reference solution for comparison.
We will see in the later tutorials how these solver characteristics impact hybrid simulations and rollback scenarios.
